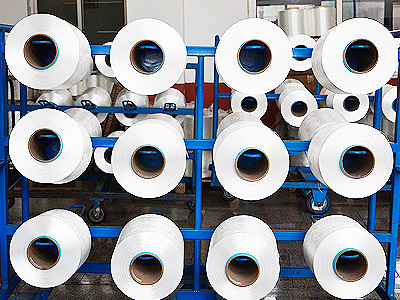

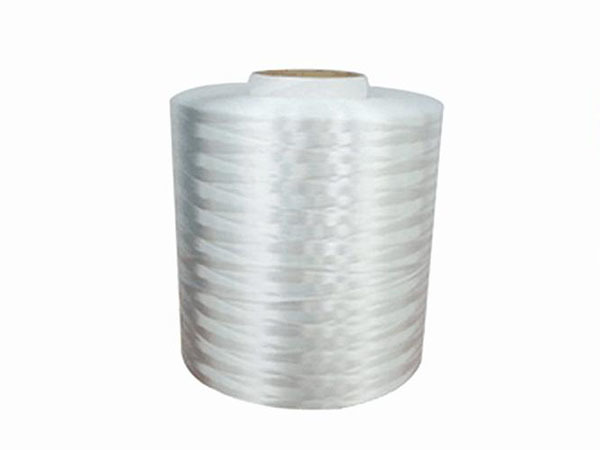

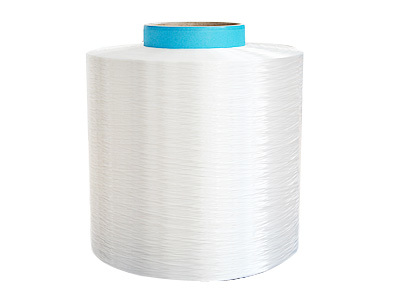

High-strength polyester industrial filament
Category:
Keywords:
High-strength polyester industrial filament
Product Details
| Specification Type | 500D/80f | 630D/96f | 750D/144f | 840D/144f | 1000D/192f | 1300D/192f | 1500D/192f | 2000D/244f | 2600D/384f | 3000D/384f | 4000D/488f | |
| Product Number | H500HT | H630HT | H750HT | H840HT | H1000HT | H1300HT | H1500HT | H2000HT | H2600HT | H3000HT | H4000HT | |
| Nominal Fineness Nominal Fineness | Dtex | 560 | 710 | 840 | 940 | 1120 | 1450 | 1685 | 2240 | 2930 | 3370 | 4400 |
| Denier | 500 | 630 | 750 | 840 | 1000 | 1300 | 1500 | 2000 | 2600 | 3000 | 4000 | |
| CV% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | ±1.4% | |
| Breaking Strength Tenacity Strength | N | ≥45.0 | ≥57.0 | ≥67.0 | ≥75.0 | ≥90.0 | ≥116.0 | ≥135.0 | ≥180.0 | ≥235.0 | ≥270.0 | ≥360.0 |
| Breaking Strength Tenacity | cN/Dtex | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 | ≥8.00 |
| g/d | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | ≥9.07 | |
| Elongation at Break Elongation at Break | % | 13.5±1.5 | 13.5±1.5 | 13.5±1.5 | 13.5±1.5 | 14±1.5 | 14±1.5 | 14±1.5 | 14.0±1.5 | 14.0±1.5 | 14.0±1.5 | 14.5±1.5 |
| Elongation under Constant Load Elongation at 4.0 cN/Dtex | % | 6.0±0.8 | 6.0±0.8 | 5.5±0.8 | 5.5±0.8 | 5.5±0.8 | 6.0±0.8 | 6.0±0.8 | 6.5±0.8 | 6.5±0.8 | 7.0±0.8 | 7.0±0.8 |
| Hot Air Shrinkage Hot Air Shrinkage 177℃×10Min×0.05cN/Dtex | % | 7.0±1.5 | 7.0±1.5 | 7.0±1.5 | 7.5±1.5 | 7.5±1.5 | 7.5±1.5 | 7.5±1.5 | 7.5±1.5 | 7.5±1.5 | 7.5±1.5 | 7.5±1.5 |
| Bobbin Weight Bobbin Weight | Kg | 9 | 9.0 | 9 | 9.0/12.0 | 9.0/12.0 | 9.0/12.0 | 12 | 12 | 12 | 12 | 12 |
| Bobbin Size Bobbin Size | mm | 280 | 280 | 280 | 280/275 | 280/275 | 280/275 | 275 | 275 | 275 | 275 | 275 |
| Tube Size Tube Size | mm | 94*110*200 | 94*110*200 | 94*110*200 | 94*110*200 94*110*300 | 94*110*200 94*110*300 | 94*110*200 94*110*300 | 94*110*300 | 94*110*300 | 94*110*300 | 94*110*300 | 94*110*300 |
Application Areas

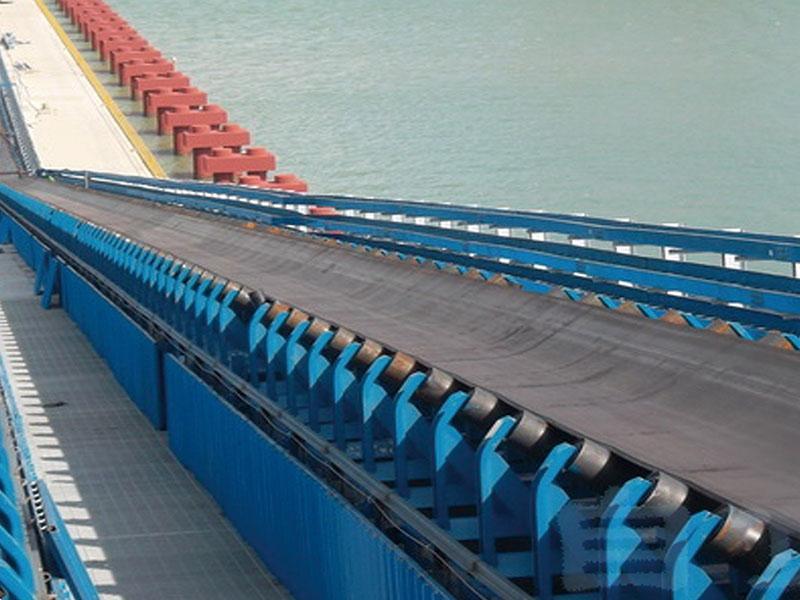

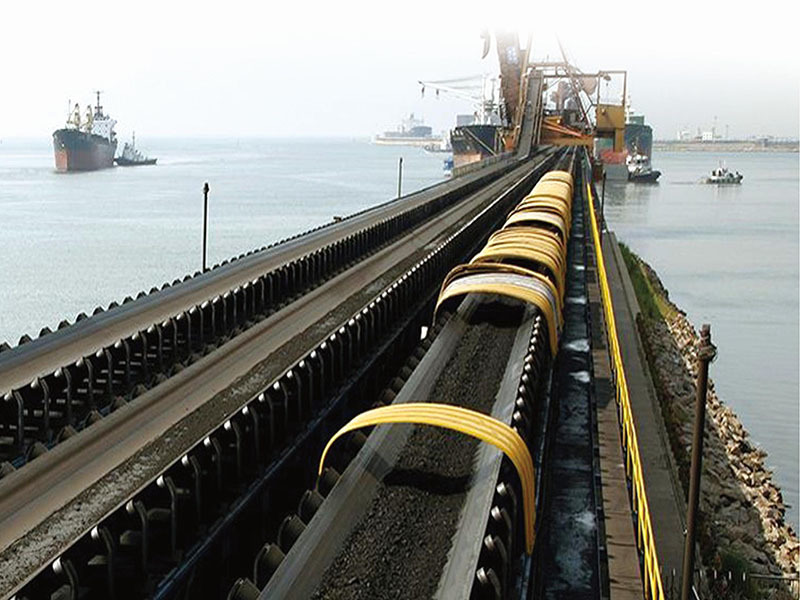

Heavy conveyor belt

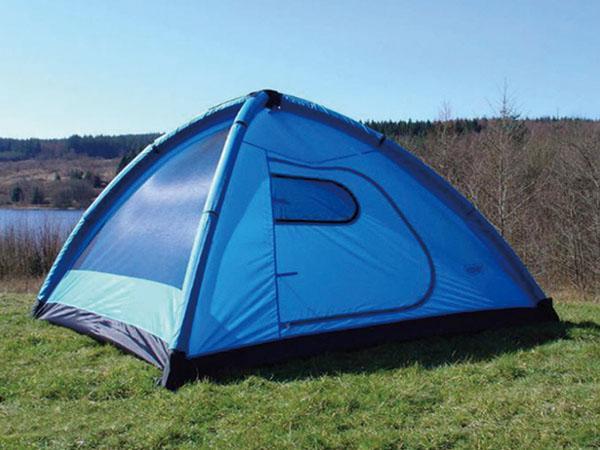

Tent cloth

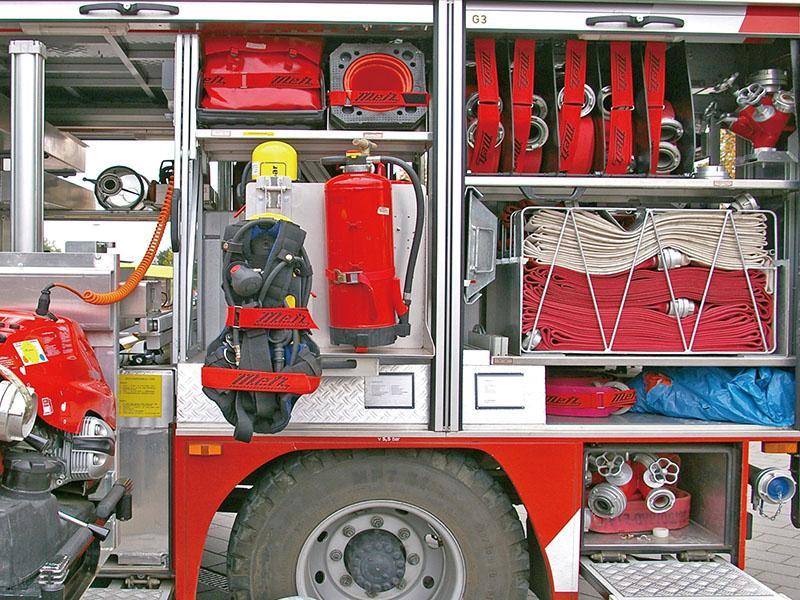

Fire hose

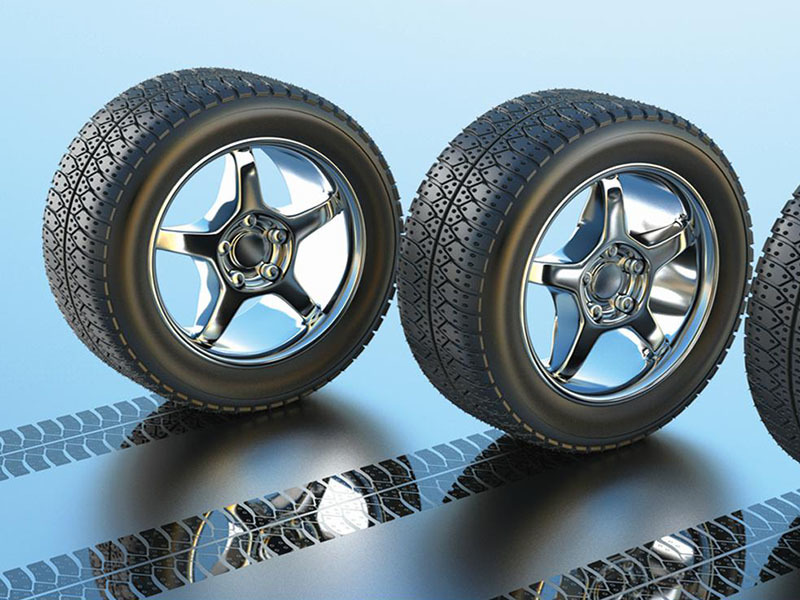

Tire
Conveyor belt
Camouflage uniform
Tire

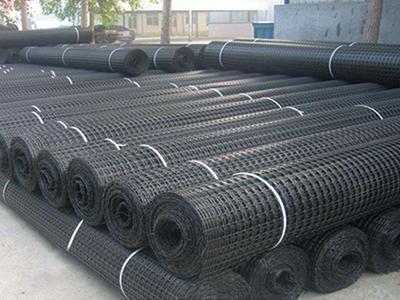

Warp-knitted geogrid
Parachute
drogue parachute
Engineering membrane structure

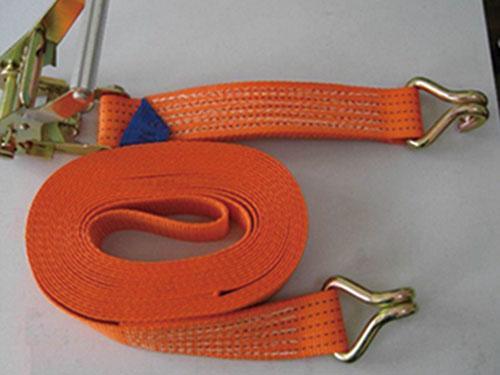

Lifting sling

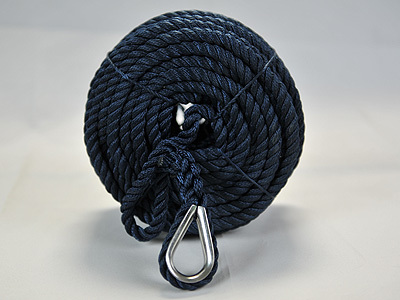

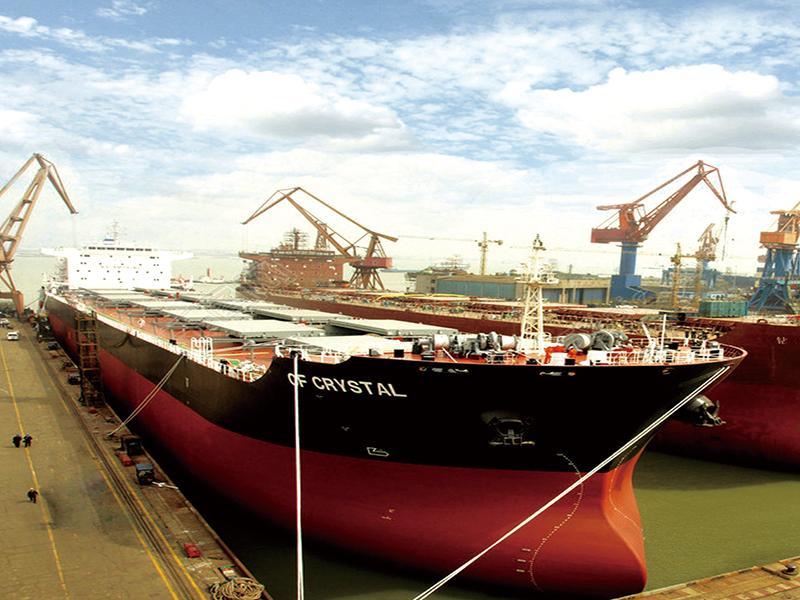

Ship mooring lines

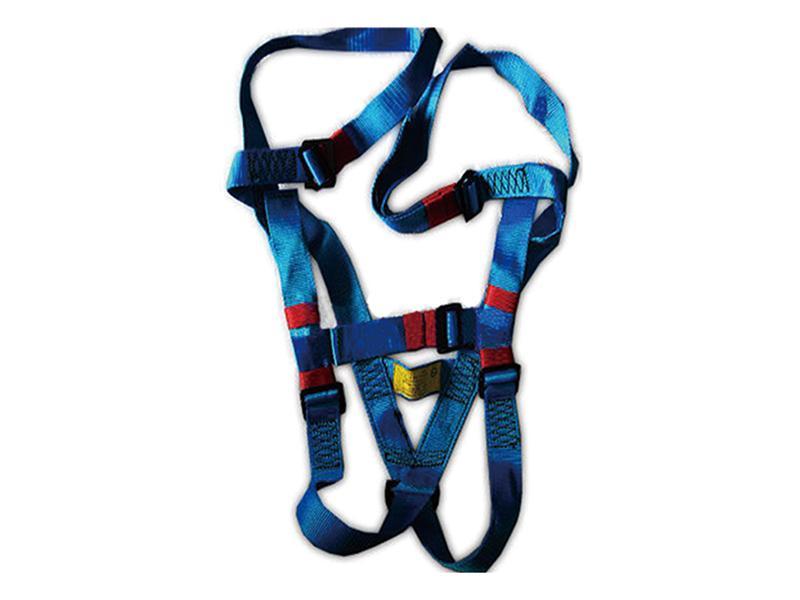

seat belt

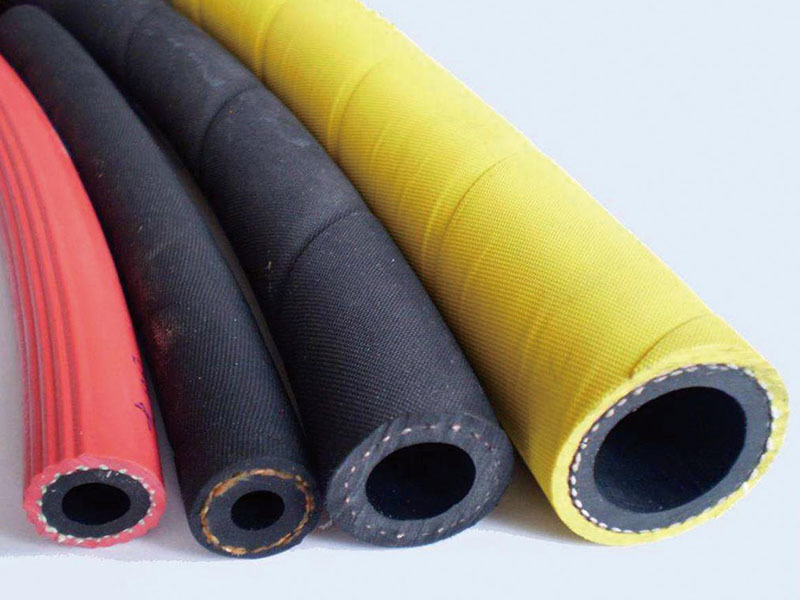

PVC hose

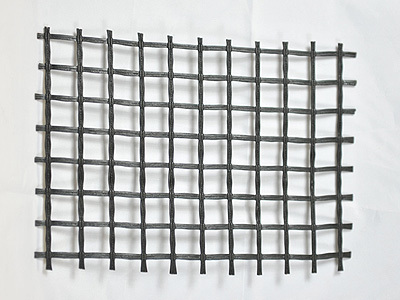

Geogrid

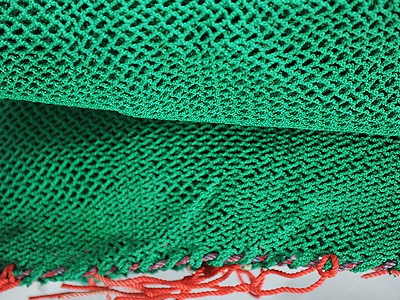

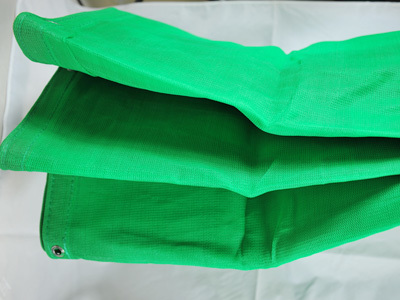

Building Network
Leisure Network

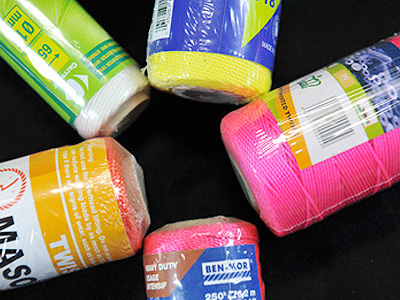

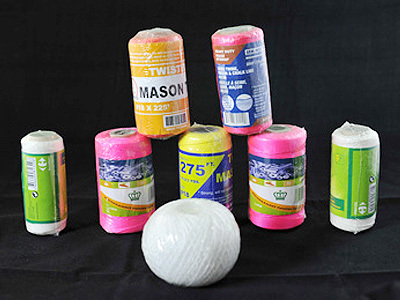

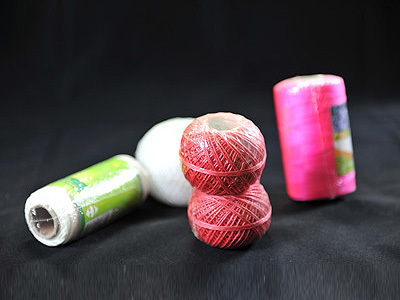

Sewing thread
Sewing thread
Sewing thread

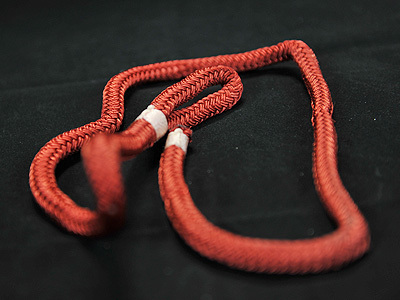

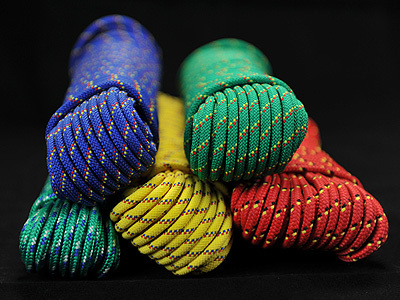

Mountaineering safety rope
Mountaineering safety rope
Mountaineering safety rope
